1.ORDERING CODE
2.SHAPES

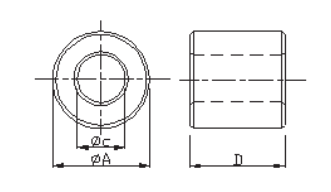

3.DIMENSIONS
Unit：mm
|
NO. |
PART NO. |
IMPEDANCE(ȍ)TYP. |
NO. |
PART NO. |
IMPEDANCE(ȍ)TYP. |
||
|
|
|
25 MHz |
100 MHz |
|
|
25 MHz |
100 MHz |
|
|
|
|
|
|
|
|
|
|
1 |
S6 T 4.0X1.3X2.2 |
12 |
45 |
47 |
S6 T 16.0X13.0X8.0 |
45 |
80 |
|
2 |
S6 T 4.0X2.6X1.8 |
15 |
45 |
48 |
S6 T 16.0X13.0X9.0 |
45 |
80 |
|
3 |
S6 T 4.0X3.0X1.5 |
15 |
35 |
49 |
S6 T 16.0X13.5X12.0 |
25 |
55 |
|
4 |
S6 T 4.0X3.0X2.0 |
15 |
35 |
50 |
S6 T 16.0X15.0X9.0 |
40 |
70 |
|
5 |
S6 T 4.40X1.20X1.80 |
10 |
40 |
51 |
S6 T 17.5X6.35X9.5 |
20 |
50 |
|
6 |
S6 T 4.95X4.5X1.0 |
30 |
60 |
52 |
S6 T 17.5X11.0X9.5 |
35 |
65 |
|
7 |
S6 T 6.0X3.0X3.0 |
15 |
45 |
53 |
S6 T 17.5X12.7X9.5 |
40 |
75 |
|
8 |
S6 T 7.3X4.3X3.3 |
20 |
50 |
54 |
S6 T 17.5X14.5X9.5 |
45 |
80 |
|
9 |
S6 T 7.6X4.2X3.6 |
18 |
45 |
55 |
S6 T 18.0X6.0X10.0 |
20 |
40 |
|
10 |
S6 T 8.0X3.0X4.0 |
18 |
45 |
56 |
S6 T 18.0X7.0X10.0 |
20 |
55 |
|
11 |
S6 T 8.0X4.0X4.0 |
20 |
50 |
56 |
S6 T 18.0X10.0X10.0 |
25 |
60 |
|
12 |
S6 T 9.0X5.0X4.5 |
20 |
50 |
58 |
S6 T 18.0X6.0X12.0 |
18 |
45 |
|
13 |
S6 T 9.0X3.0X5.0 |
15 |
40 |
59 |
S6 T 18.45X10.25X9.75 |
30 |
65 |
|
14 |
S6 T 9.0X8.0X5.0 |
25 |
60 |
60 |
S6 T 18.7X15X12.7 |
30 |
65 |
|
15 |
S6 T 9.1X4.6X5.0 |
20 |
45 |
61 |
S6 T 19.0X8.0X12.0 |
25 |
50 |
|
16 |
S6 T 9.5X4.8X5.0 |
20 |
45 |
62 |
S6 T 19.0X10.0X10.0 |
30 |
65 |
|
17 |
S6 T 10.0X4.0X6.0 |
15 |
40 |
63 |
S6 T 20.0X5.0X10.0 |
20 |
45 |
|
18 |
S6 T 10.0X5.0X5.0 |
20 |
45 |
64 |
S6 T 20.0X10.0X10.0 |
30 |
65 |
|
19 |
S6 T 10.0X5.0X7.0 |
15 |
40 |
65 |
S6 T 20.0X10.0X12.0 |
25 |
55 |
|
20 |
S6 T 10.3X10.2X5.8 |
25 |
60 |
66 |
S6 T 21.0X6.0X12.7 |
20 |
45 |
|
21 |
S6 T 10.5X10.0X7.0 |
20 |
50 |
67 |
S6 T 21.0X6.0X13.2 |
18 |
45 |
|
22 |
S6 T 11.0X9.0X5.0 |
35 |
65 |
68 |
S6 T 21.2X6.5X12.7 |
20 |
40 |
|
23 |
S6 T 11.8X8.0X7.8 |
20 |
45 |
69 |
S6 T 22.0X5.0X14.0 |
15 |
40 |
|
24 |
S6 T 12.0X3.0X6.0 |
15 |
40 |
70 |
S6 T 22.0X8.0X14.0 |
20 |
45 |
|
25 |
S6 T 12.0X4.0X7.5 |
15 |
40 |
71 |
S6 T 22.0X10.0X10.0 |
40 |
80 |
|
26 |
S6 T 12.0X7.0X5.6 |
25 |
50 |
72 |
S6 T 22.0X10.0X14.0 |
25 |
50 |
|
27 |
S6 T 12.0X10.0X7.5 |
25 |
50 |
73 |
S6 T 22.0X12.0X13.7 |
25 |
50 |
|
28 |
S6 T 12.7X6.4X7.9 |
20 |
45 |
74 |
S6 T 22.0X13.0X14.0 |
30 |
60 |
|
29 |
S6 T 13.0X6.0X7.0 |
20 |
45 |
75 |
S6 T 22.0X14.0X10.0 |
50 |
90 |
|
30 |
S6 T 13.0X10.0X7.0 |
25 |
60 |
76 |
S6 T 22.5X10.0X13.5 |
25 |
50 |
|
31 |
S6 T 13.0X12.5X7.0 |
35 |
65 |
77 |
S6 T 23.8X9.5X12.7 |
30 |
60 |
|
32 |
S6 T 14.0X5.0X7.0 |
20 |
45 |
78 |
S6 T 23.8X14.0X11.4 |
55 |
90 |
|
33 |
S6 T 14.0X5.0X9.0 |
15 |
40 |
79 |
S6 T 25.0X5.0X15.0 |
20 |
40 |
|
34 |
S6 T 14.0X5.0X10.0 |
15 |
40 |
80 |
S6 T 25.0X6.35X15.0 |
20 |
45 |
|
35 |
S6 T 14.0X8.0X10.0 |
18 |
45 |
81 |
S6 T 25.0X10.0X15.0 |
25 |
50 |
|
36 |
S6 T 14.2X10.2X6.35 |
40 |
85 |
82 |
S6 T 25.0X12.0X15.0 |
30 |
55 |
|
37 |
S6 T 14.2X5.0X7.0 |
20 |
40 |
83 |
S6 T 25.0X15.0X15.0 |
40 |
70 |
|
38 |
S6 T 14.5X5.5X8.5 |
20 |
40 |
84 |
S6 T 28.0X13.0X16.0 |
40 |
70 |
|
39 |
S6 T 14.5X8.0X10.0 |
20 |
40 |
85 |
S6 T 29.1X13.8X19.0 |
25 |
55 |
|
40 |
S6 T 15.0X12.0X10.5 |
25 |
50 |
86 |
S6 T 31.0X7.0X19.0 |
20 |
50 |
|
41 |
S6 T 16.0X4.8X9.0 |
30 |
60 |
87 |
S6 T 31.0X10.0X19.0 |
25 |
55 |
|
42 |
S6 T 16.0X5.0X10.0 |
18 |
40 |
88 |
S6 T 31.0X16.0X19.0 |
40 |
75 |
|
43 |
S6 T 16.0X6.0X9.0 |
20 |
45 |
89 |
S6 T 38.1X12.7X19.0 |
40 |
80 |
|
44 |
S6 T 16.0X8.0X10.0 |
20 |
45 |
90 |
S6 T 40.0X12.5X27.0 |
25 |
55 |
|
45 |
S6 T 16.0X8.0X12.0 |
18 |
40 |
91 |
S6 T 40.6X15.0X27.4 |
30 |
65 |
|
46 |
S6 T 16.0X12.0X9.0 |
30 |
65 |
92 |
S6 T 61X20X35.5 |
80 |
135 |
