数字设备中使用的圆形电缆产生的EMI抑制。产品广泛应用于数码相机、投影仪、PDA掌上电脑、打印机，手提电脑、电视机等
联系电话：
详情介绍
1.ORDERING CODE

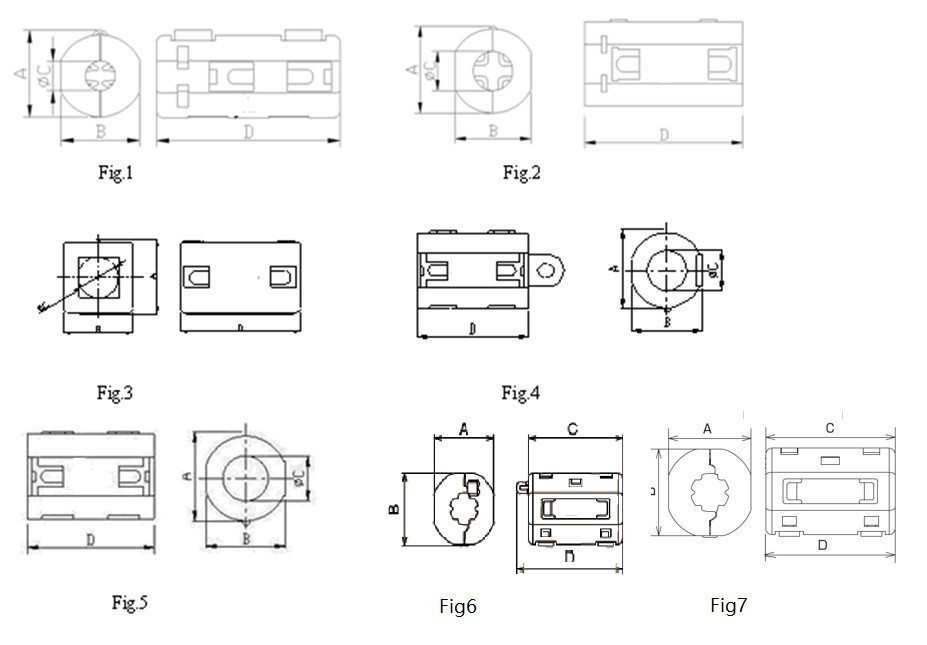

2.SHAPES
3.DIMENSIONS
Unit:mm
|
NO. |
PART NO. |
Fig. |
A |
B |
C |
D |
CABLE DIAMETER |
IMPEDANCE(Ω) TYP. |
|
|
|
|
|
|
|
|
|
|
25MHz |
100MHz |
|
1 |
S6 UF-30-A |
1 |
12.0±1.0 |
11.5±1.0 |
4.0±1.0 |
25.0±1.0 |
MAX.Φ3.5 |
50 |
120 |
|
2 |
S6 UF -55 |
2 |
14.5±1.0 |
13.5±1.0 |
5.5±1.0 |
29.5±1.0 |
MAX.Φ5.0 |
50 |
120 |
|
3 |
S6 UF -60-A |
2 |
19.8±1.0 |
18.0±1.0 |
6.0±1.0 |
37.0±1.0 |
MAX.Φ5.5 |
120 |
200 |
|
4 |
S6 UF -65-A |
3 |
20.5±1.0 |
20.0±1.0 |
6.5±1.0 |
32.5±1.0 |
MAX.Φ6.2 |
100 |
260 |
|
5 |
S6 UF -70-A |
1 |
16.0±1.0 |
14.0±1.0 |
7.2±1.0 |
24.0±1.0 |
MAX.Φ6.7 |
40 |
70 |
|
6 |
S6 UF -72 |
1 |
16.0±1.0 |
14.0±1.0 |
7.2±1.0 |
31.5±1.0 |
MAX.Φ6.7 |
45 |
100 |
|
7 |
S6 UF -75 |
2 |
19.8±1.0 |
18.0±1.0 |
9.0±1.0 |
37.0±1.0 |
MAX.Φ8.8 |
70 |
150 |
|
8 |
S6 UF -100-A |
3 |
25.5±1.0 |
23.5±1.0 |
10.0±1.0 |
32.5±1.0 |
MAX.Φ9.7 |
90 |
180 |
|
9 |
S6 UF -110-A |
2 |
20.5±1.0 |
21.0±1.0 |
11.0±1.0 |
36.5±1.0 |
MAX.Φ10.5 |
50 |
110 |
|
10 |
S6 UF -110-B |
4 |
20.5±1.0 |
21.0±1.0 |
11.0±1.0 |
30.5±1.0 |
MAX.Φ10.8 |
50 |
110 |
|
11 |
S6 UF -110-C |
4 |
20.5±1.0 |
21.0±1.0 |
11.0±1.0 |
30.5±1.0 |
MAX.Φ10.8 |
50 |
110 |
|
12 |
S6 UF -125 |
2 |
30.0±1.0 |
29.0±1.0 |
13.0±1.0 |
39.0±1.0 |
MAX.Φ12.5 |
70 |
180 |
|
13 |
S6 UF -130 |
3 |
31.5±1.0 |
30.5±1.0 |
13.0±1.0 |
32.5±1.0 |
MAX.Φ12.7 |
100 |
190 |
|
14 |
F23 UF-3 |
7 |
13.7±1.0 |
13.5±1.0 |
18.0±1.0 |
--- |
MAX.Φ4.0 |
15 |
35 |
|
15 |
F23 UF-4 |
7 |
13.7±1.0 |
13.5±1.0 |
27±1.0 |
--- |
MAX.Φ4.5 |
40 |
75 |
|
16 |
F23 UF-5 |
6 |
18.1±1.0 |
18.4±1.0 |
31.5±1.0 |
35.5±1.0 |
MAX.Φ5.5 |
55 |
100 |
|
17 |
F23 UF-7 |
6 |
14.2±1.0 |
15.8±1.0 |
20.0±1.0 |
24.0±1.0 |
MAX.Φ7.0 |
25 |
45 |
|
18 |
F23 UF-8 |
6 |
20.1±1.0 |
20.4±1.0 |
31.5±1.0 |
35.5±1.0 |
MAX.Φ8.5 |
40 |
80 |
|
19 |
F23 UF-10 |
6 |
26.3±1.0 |
26.4±1.0 |
32.4±1.0 |
37.2±1.0 |
MAX.Φ10.5 |
50 |
105 |
